Troubleshoot and debug Blueprints

When you build Blueprints, you might run into issues. Here are tips and tools to help you debug them:

Review Common gotchas​

  • Require wp-load: to run a WordPress PHP function using the runPHP step, you’d need to require wp-load.php. So, the value of the code key should start with "<?php require_once('wordpress/wp-load.php'); REST_OF_YOUR_CODE".
  • Enable networking: to access wp.org assets (themes, plugins, blocks, or patterns), or load a stylesheet using add_editor_style() (say, when creating a custom block style), you’d need to enable the networking option: "features": {"networking": true}.

Blueprints Builder​

You can use an in-browser Blueprints editor to build, validate, and preview your Blueprints in the browser.

Caution

The editor is under development and the embedded Playground sometimes fails to load. To get around it, refresh the page. We're aware of that, and are working to improve the experience.

Check for the Filesystem and Database​

Some blueprint steps (such as writeFile) alter the internal Filesystem structure of the Playground instance and some others (such as runSql) alter the internal WordPress database.

To check the final internal filesytem structure and database (after the blueprint steps have been applied) we can leverage some WordPress plugins that provide a SQL manager and a file explorer such as SQL Buddy and WPide (you can see them in action from https://playground.wordpress.net/?plugin=sql-buddy&plugin=wpide)

astuce

There are a bunch of methods we can launch from the console of any WordPress Playground instance to inspect the internals of that instance. They're exposed as part of window.playground object (see Developers > JavaScript API > Debugging and testing). Some examples:

> await playground.isDir("/wordpress/wp-content/plugins")
true
> await playground.listFiles("/wordpress/wp-content/plugins")
(3) ['hello.php', 'index.php', 'WordPress-Importer-master']

Full list of methods we can use is available here

Check for errors in the browser console​

If your Blueprint isn’t running as expected, open the browser developer tools to see if there are any errors.

To open the developer tools in Chrome, Firefox, Safari*, and Edge: press Ctrl + Shift + I on Windows/Linux or Cmd + Option + I on macOS.

attention

If you haven't yet, enable the Develop menu: go to Safari > Settings... > Advanced and check Show features for web developers.

The developer tools window allows you to inspect network requests, view console logs, debug JavaScript, and examine the DOM and CSS styles applied to your webpage. This is crucial for diagnosing and fixing issues with Blueprints.

Log your own error messages​

You can error_log your own error messages through runPHP step (see blueprint example and live demo) and check them from the "View Logs" option or from the browser's console.

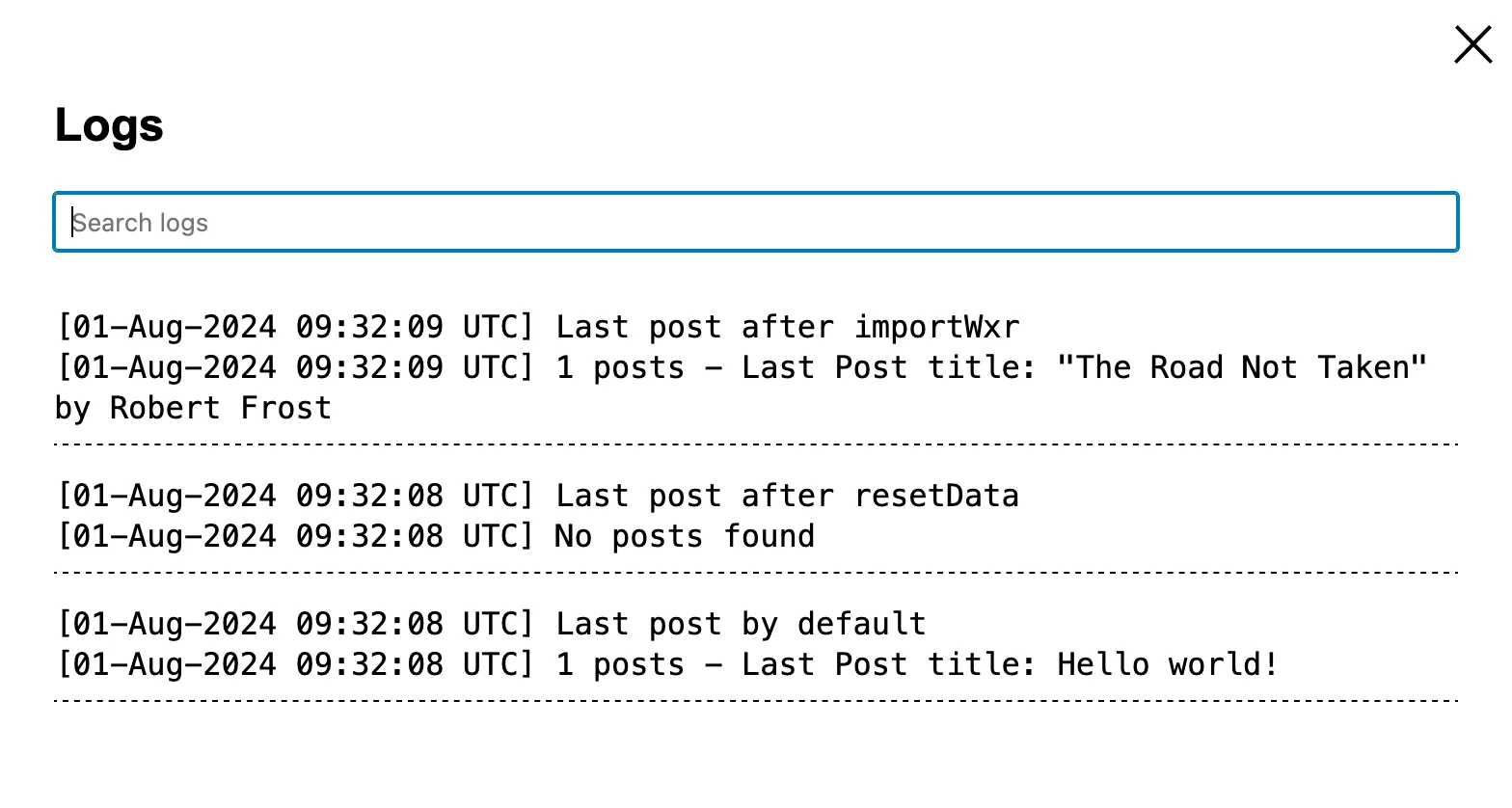

Log errors snapshot

info

When you download your Playground instance as a zip through the "Download as zip" option you'll also download the debug.log file containing all the logs from your Playground instance.

Ask for help​

The community is here to help! If you have questions or comments, open a new issue in this repository. Remember to include the following details:

  • The Blueprint you’re trying to run.
  • The error message you’re seeing, if any.
  • The full output from the browser developer tools.
  • Any other relevant information that might help us understand the issue: OS, browser version, etc.
